Automotive Reaction Injection Molding new RIM rapid small batches
manufacturing
Reaction Injection Molding (RIM) quick details:
Reaction Injection Molding is a low pressure, low temperature
process used to mold many types of plastic parts. This process is
typically used for the medical equipments/devices, industrial and
automotive interiors and exteriors. RIM is often utilized for the molding of strong, lightweight parts
that are easily painted. The rigid materials used by KAIAO come
with a UL94V-0 rating PP & ABS for flammability.
The RIM molding material utilized by KAIAO is a two-component
system which consists of polyol and isocyanate liquids that are
mixed at a high pressure and then metered into the closed tool at a
low pressure. The material then expands to fill the tool and is
ejected in about 5 minutes. After mixing the two components PU, inject the mixture into rapid
prototyping mold under room temperature and low pressure. After
polymerization, cross-linkage, and curing chemical reactions,
physical part will be formed.
Reaction Injection Molding Advantages:
-Large Parts, able to fill molds for very large parts, max.2000mm X 1200mm X 1000mm;
-Encapsulation of Inserts - Inserts of many types can be placed
into a mold prior to injection of the RIM material;
-Thick and Thin Walls, flexibility to design parts with significant
wall thickness variations;
-Class-A Surfaces by post finishing process;
-Lower Cost Tooling Options than traditional tooling.
Automotive Reaction Injection Molding Applications:
-Automotive Bezels;

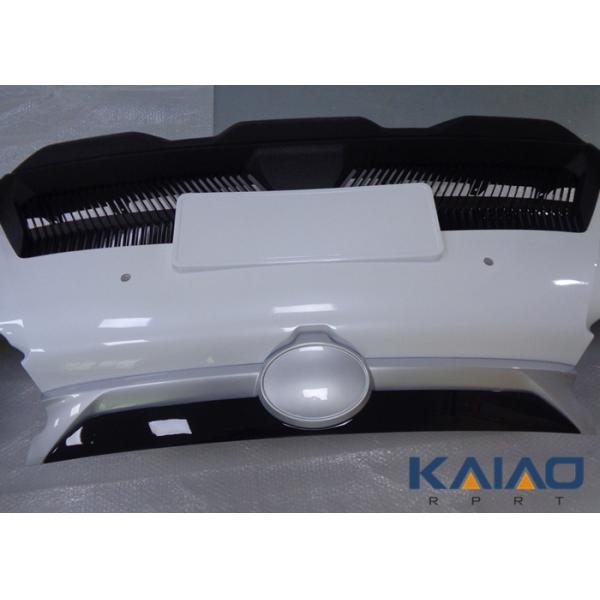

-Automotive bumpers;
-Automotive Multiple part complete plastic enclosures;
-Automotive plastic car doors;
-Automotive plastic front and rear housings.
RIM Low Volume Manufacturing Technical Parameters:
| Mold material: | Epoxy resin mold (life >100 shots); ABS plastic mold (life
>300 shots), Aluminum mold (life >1000shots) |
| Injection material: | Dual injection process PU |
| Physical properties: | PP/ABS, part is durable, high impact, high degree of fit, loading
and unloading properties. |
| General curing time: | 15-30 minutes/piece, part takes 2-4 hours to cure under 80℃
condition after mold release |
| Standard accuracy: | ±0.20mm/100mm |
| Thickness of mold part: | max.10mm |
| Size of mold part: | max.2000mm X 1200mm X 1000mm,weight is 10Kg |
OEM/ODM Service:
We make OEM/ODM parts based on your 3D files and 2D drawings, 100+
professional engineers and technicians are here to support you.
Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.
Shipping:
- International express in 2-3 days such as UPS, TNT, DHL, Fedex,
etc
- Internatioal air: CA, AA, EA, etc
- By sea
